Specifications
Model |
N/A FL40SBL60-24V-085-164A |
Product Type |
N/A DC Motor |
Series |
N/A Slotless Brushless (BLDC) Motor |
Number of Poles |
N/A 4 |
Number of Phase |
N/A 3 |
Direct Current (DC) Rated Voltage |
N/A 24 V |
No Load Speed |
N/A 8500 rpm |
No Load Current |
N/A 0.5 A |
Rated Torque |
N/A 200 mN·m |
Rated Current |
N/A 8 A |
Rated Speed |
N/A 7850 rpm |
Rated Power |
N/A 164 W |
Rated Efficiency |
N/A 0.835 % |
Peak Torque |
N/A 600 mN·m |
Peak Current |
N/A 24 A |
Line to Line Resistance |
N/A 0.2 Ohm |
Line to Line Inductance |
N/A 0.041 mH |
Torque Constant |
N/A 26.89 mN·m/A |
Back Electromotive Force (EMF) |
N/A 1.99 Vrms/Krpm |
Housing - Ambient Thermal Resistance |
N/A 3.67 K/W |
Motor Thermal Time Constant |
N/A 736 s |
Maximum Temperature of Winding |
N/A 155 ºC |
Electrical Time Constant |
N/A 0.205 ms |
Winding Type |
N/A Star Connection |
Dielectric Strength |
N/A 600VAC/1S |
Insulation Resistance for 500 Volt (V) Direct Current (DC) Voltage |
N/A 100 MO |
Ambient Temperature |
N/A -20 ~ +50 ºC |
Insulation Class |
N/A Class B |
Radial Play |
N/A 0.02 mm @ 4 N |
Axial Play |
N/A 0.14 mm@ 4 N |
Maximum Radial Force |
N/A 12 N 5 mm from the flange |
Maximum Axial Force |
N/A 5 N |

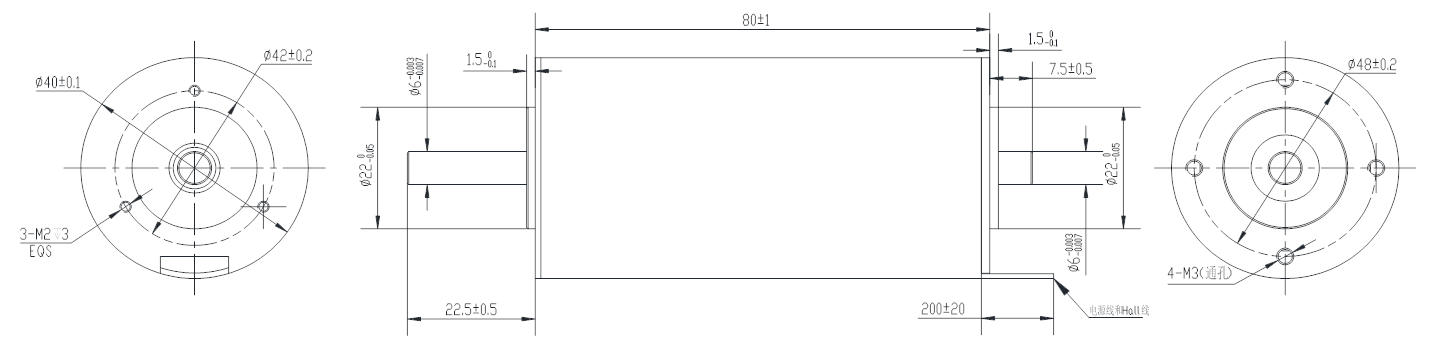

Image |
N/A
 |
