Specifications
Model |
N/A FL32SBL64-24V-157130A |
Product Type |
N/A DC Motor |
Series |
N/A Slotless Brushless (BLDC) Motor |
Number of Poles |
N/A 4 |
Number of Phase |
N/A 3 |
Direct Current (DC) Rated Voltage |
N/A 24 V |
No Load Speed |
N/A 17000 rpm |
No Load Current |
N/A 0.75 A |
Rated Torque |
N/A 80 mN·m |
Rated Current |
N/A 6.74 A |
Rated Speed |
N/A 16100 rpm |
Rated Power |
N/A 134.8 W |
Rated Efficiency |
N/A 83.1 % |
Peak Torque |
N/A 240 mN·m |
Peak Current |
N/A 20.5 A |
Line to Line Resistance |
N/A 0.12 Ohm |
Line to Line Inductance |
N/A 0.015 mH |
Torque Constant |
N/A 13.7 mN·m/A |
Back Electromotive Force (EMF) |
N/A 1.02 Vrms/Krpm |
Housing - Ambient Thermal Resistance |
N/A 3.24 K/W |
Motor Thermal Time Constant |
N/A 630 s |
Maximum Temperature of Winding |
N/A 155 ºC |
Electrical Time Constant |
N/A 0.125 ms |
Winding Type |
N/A Star Connection |
Dielectric Strength |
N/A 600VAC/1S |
Insulation Resistance for 500 Volt (V) Direct Current (DC) Voltage |
N/A 100 MO |
Ambient Temperature |
N/A -20 ~ +50 ºC |
Insulation Class |
N/A Class B |
Radial Play |
N/A 0.02 mm @ 4 N |
Axial Play |
N/A 0.14 mm@ 4 N |
Maximum Radial Force |
N/A 10 N at 5 mm from the flange |
Maximum Axial Force |
N/A 4 N |

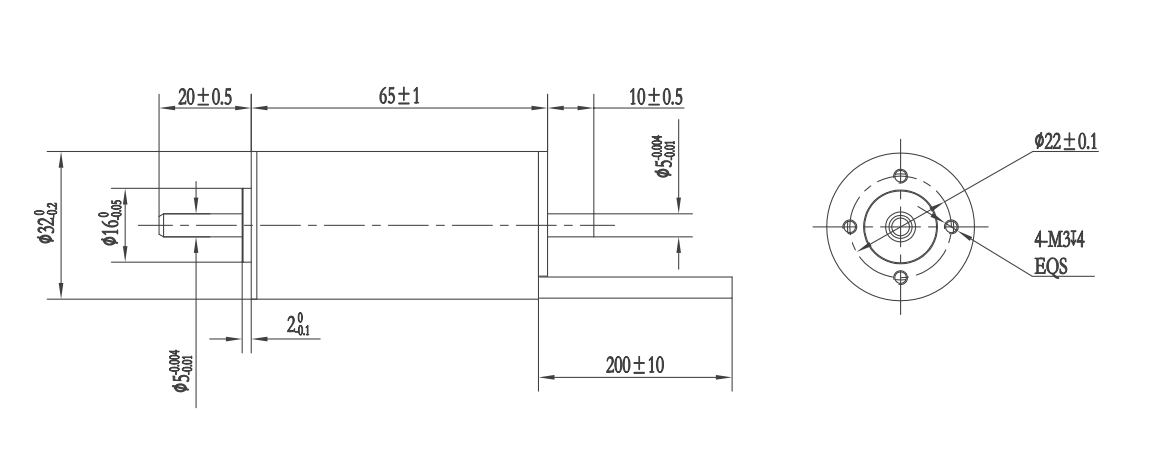

Image |
N/A
 |
