Specifications
Model |
N/A FL130BLG200 |
Product Type |
N/A DC Motor |
Series |
N/A High Performance Brushless (BLDC) Motor |
Rated Power |
N/A 2000 W |
Alternating Current (AC)/Direct Current (DC) Rated voltage |
N/A 220 V |
Rated Speed |
N/A 2000 rpm |
Rated Torque |
N/A 9.55 N·m |
Rated Current |
N/A 7.8 A |
Peak Torque |
N/A 28.65 N·m |
Peak Current |
N/A 23.4 A |
Line to Line Resistance |
N/A 1.4 Ohm |
Line to Line Inductance |
N/A 6.8 mH |
Back Electromotive Force (EMF) Constant |
N/A 81 Vrms/Krpm |
Torque Constant |
N/A 1.22 N·m/A |
Rotor Inertia |
N/A 14 kg.cm² |
Rotor Inertia with Brake |
N/A 15.2 kg.cm |
Number of Poles |
N/A 10 |
Motor Length |
N/A 150 mm |
Motor Length with Brake |
N/A 178 mm |
Weight |
N/A 7 kg |
Weight with Brake |
N/A 9.5 kg |
Winding Type |
N/A Star Connection |
Maximum Radial Force |
N/A 490 N at 20 mm from the flange |
Maximum Axial Force |
N/A 196 N |
Insulation Class |
N/A Class B |
Protection Level |
N/A Ingress Protection (IP65) |
Temperature |
N/A -20 ~ +50 ºC |
Relative Humidity |
N/A 90% RH No Dewing |
Storage Condition |
N/A -20~ +60 85% RH No Dewing |
Installation Environment |
N/A 1000 m Far Away Active Gas |
Operating Environment |
N/A Ash Combustible Gas Oil Drop |

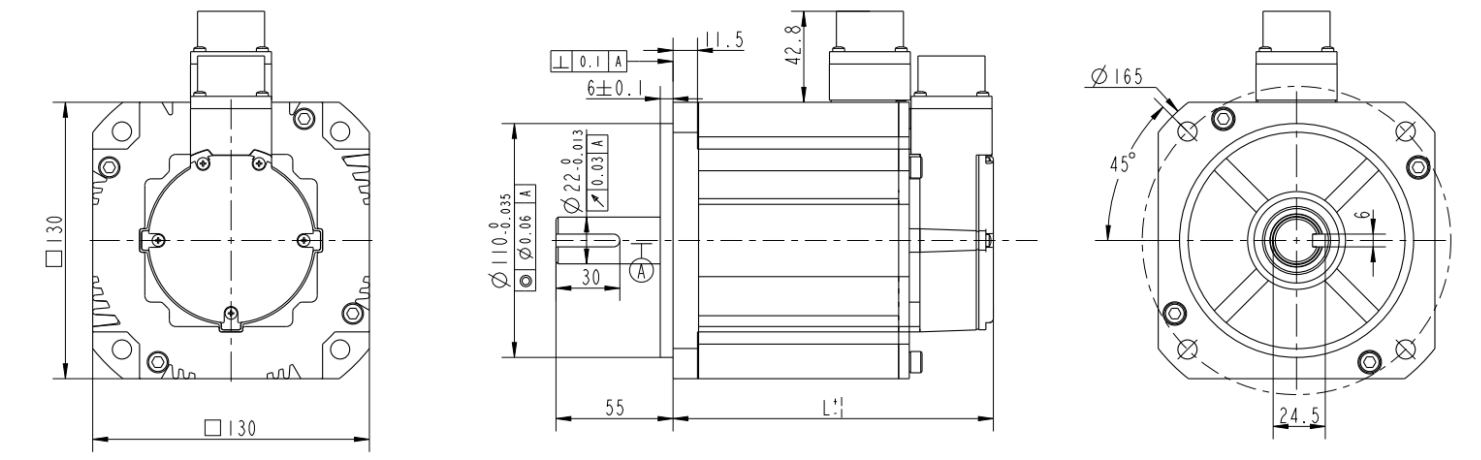

Image |
N/A
 |
